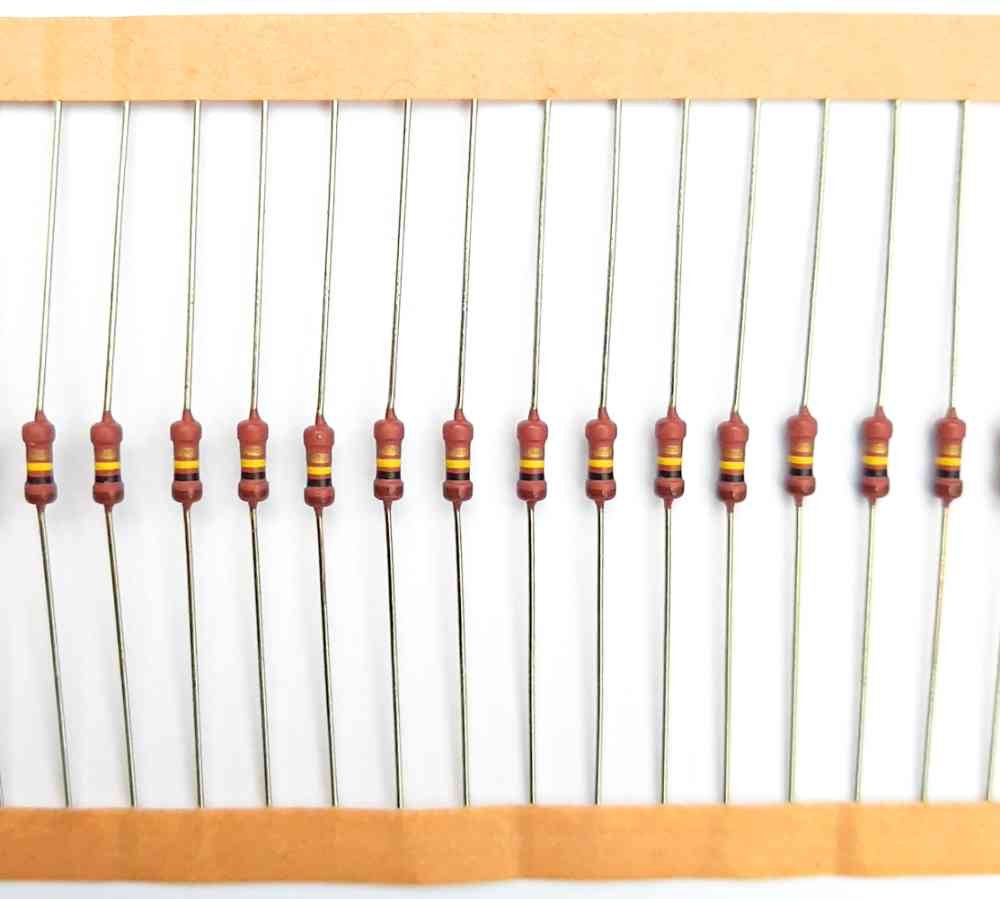

100k Ohm SFR25H THT Standard Metal Film Resistor – 50PCs

100k Ohm SFR25H THT Standard Metal Film Resistor.

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps.

The resistors are coated with a colored lacquer (light-blue for type SFR16S; light-green for type SFR25 and red-brown for type SFR25H) 100K Ohm resistor which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.

FEATURES :

• Small size (SFR16S: 0204, SFR25 / SFR25H: 0207)
• Low noise (max. 1.5 μV/V for R > 1 M)
• Compatible to both lead (Pb)-free and lead containing soldering processes
• Resistor Colour: Red-Brown

APPLICATIONS :

• General purpose resistors
• Luminous Inverter
• Luminous Eco Watt Inverter Use

TECHNICAL SPECIFICATIONS :

• DIN size: 0207
• Resistance: 100k Ohm
• Resistance tolerance: ± 5 %; ± 1 %
• Temperature coefficient: ± 250 ppm/K; ± 100 ppm/K
• Resistor Power: 0.5 watt (1/2)
• Operating voltage: 350V
• Operating temperature range: -55 °C to 155 °C
• Resistor Size: 1/4 watt resistor Size
• Resistor Dimensions (W*L): 2.5mm * 6.5mm
