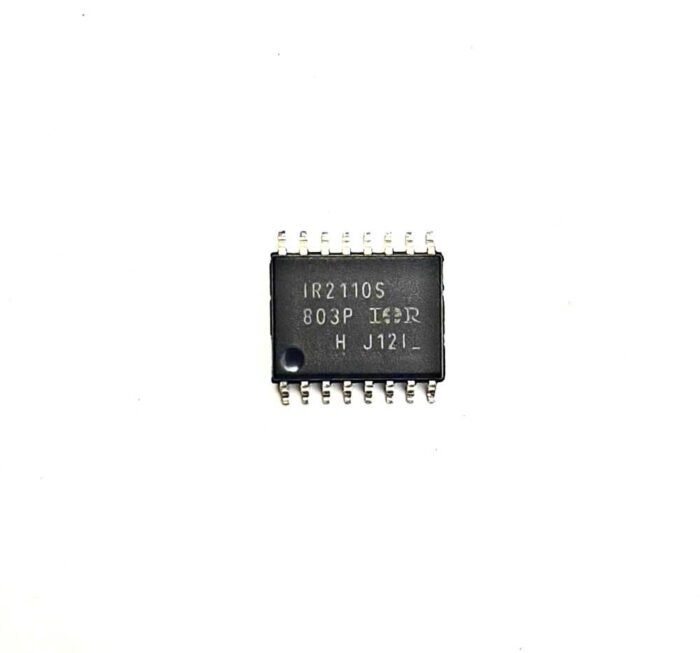

IR2110S 2.5A high and low-side gate driver IC – 2Pc || IR2110S High and Low Side Driver IC.

Summary of Features IR2110S 2.5A:

• Floating channel designed for bootstrap operation
• Fully operational to +500 V
• Fully operational to +600 V version available (IR2113)
• dV/dt immune
• Gate drive supply range from 10 to 20 V
• Undervoltage lockout for both channels
• 3.3 V logic compatible
• Separate logic supply range from 3.3 V to 20 V
• Logic and power ground + /- 5 V offset
• CMOS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Outputs in phase with inputs
